Revive precious house as beautiful with paint
NANO TECH SERIES selected by durability
Deterioration rate of coating film is different from roof and wall as roof is much exposed under severe environments such as sunshine and rain than wall.
NANO TECH SERIES is enabled to consider to repaint at the same time for the next as the durability of roof paint is increased to match the deterioration rate of the exterior wall.

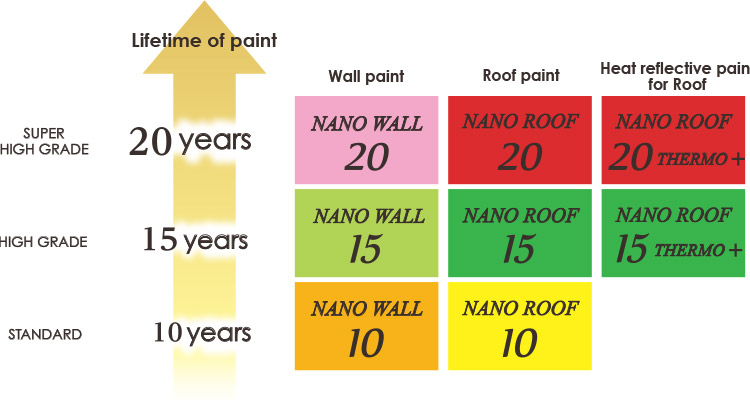

- ※Lifetime of paint is not warranty period. Please note that it will be changed significantly depending on the painting part, condition of substrate and weather condition. Recommend to consider repainting before the number of durability years.
- ※NANO ROOF THERMO + using unique pigments is slightly less durability compared to NANO ROOF of the same grade.
Products
Forever beautiful
Reliable technology to keep protecting a house

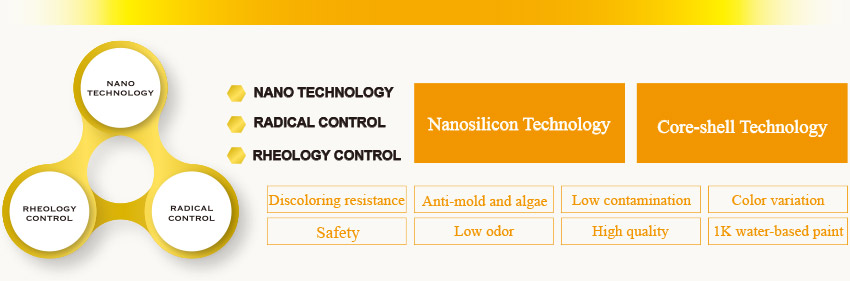

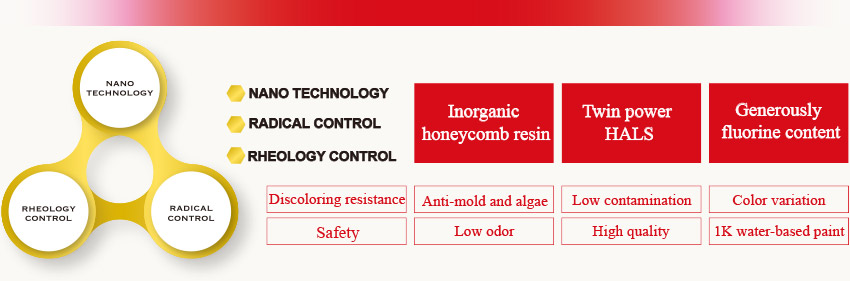

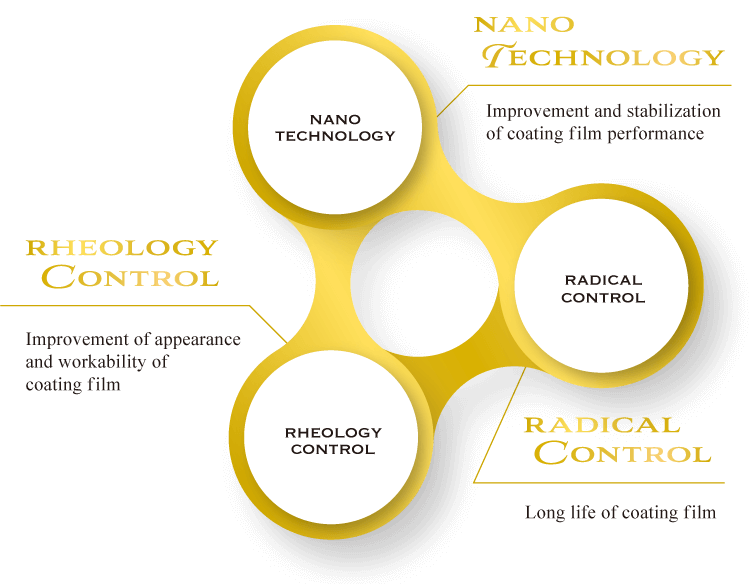

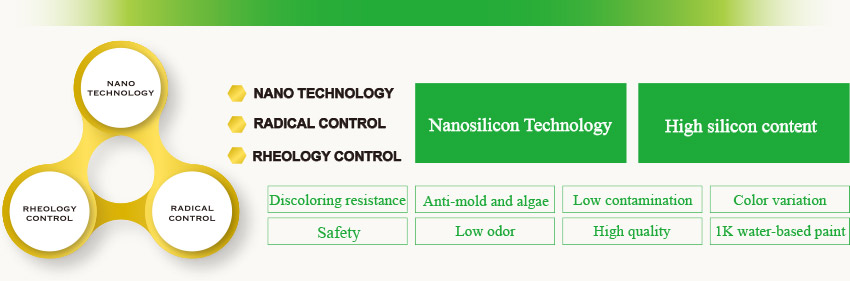

NANO TECH SERIES is adapted
“Nano technology”, “Radical control”
and “Rheology control” in all grades,
and developed to pursue durability,
stable physical property and cost balance.

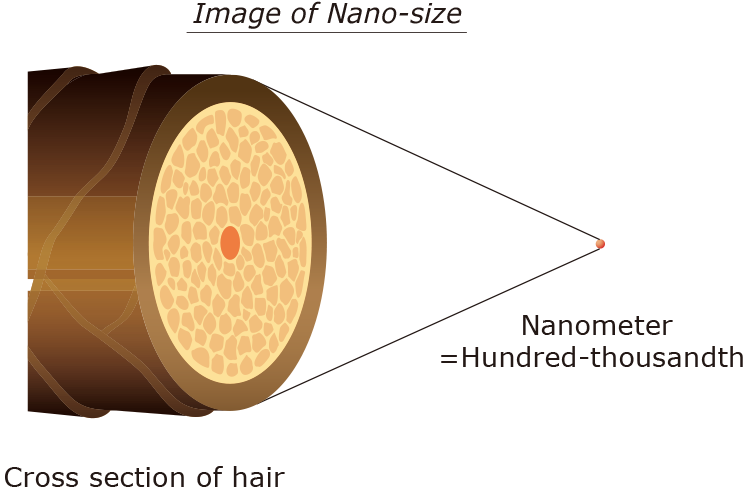

Nano-size is extremely small size that is equivalent to about hundred-thousandth of hair. This extremely small product design makes a big difference at the nano level in quality.
NANO TECH SERIES uses original technology for each product, and it succeeded in providing excellent performance consistently by maximizing its potential.
“Radical” is a factor of deterioration of coating film caused by ultraviolet rays and rain etc.
“High radical control” that is one grade up from radical control, has succeeded in long life of coating film.
-

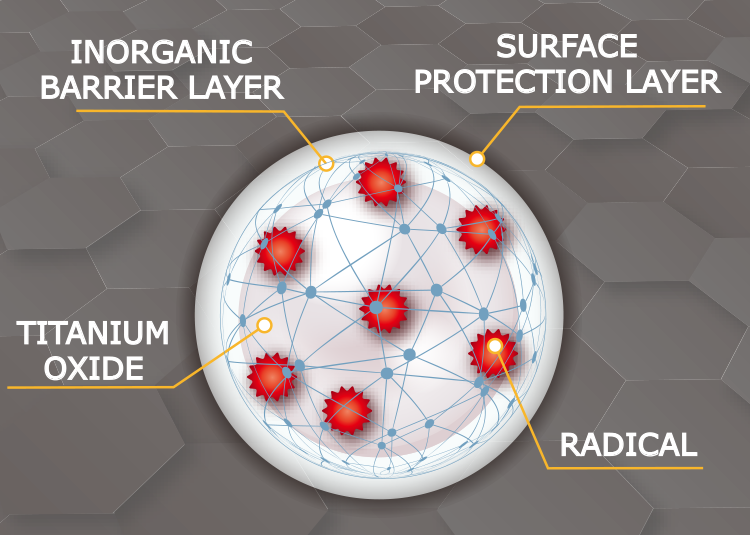

- Surface protection of titanium oxide
- It protects surface layer of titanium oxide, which is generation source of radicals, and suppresses the generation of radicals.
-

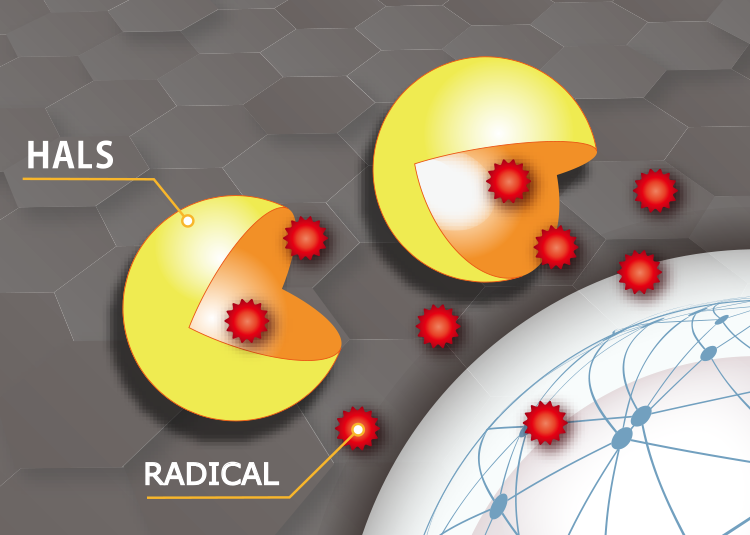

- Capture of radical by HALS
- NANO TECH SERIES efficiently captures radicals by placing many HALS around titanium dioxide unlike general additives. (High radical control) HALS (Light stabilizer) has the function of capturing the generated radical.
-

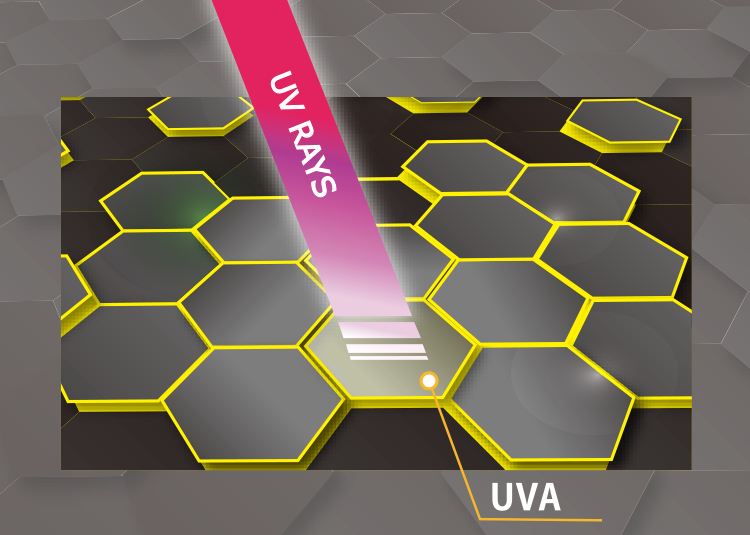

- Coating protection by UVA
- UVA is called an ultraviolet light absorbent, and it suppresses the generation of radicals by absorb ultraviolet rays from the sun.
In addition to the viscosity (rheology) design that matches the roof and wall surfaces, further rheology adjustment has achieved the highest level of coating efficiency, and also has achieved a beautiful edge covering and a feeling of thickness.
-

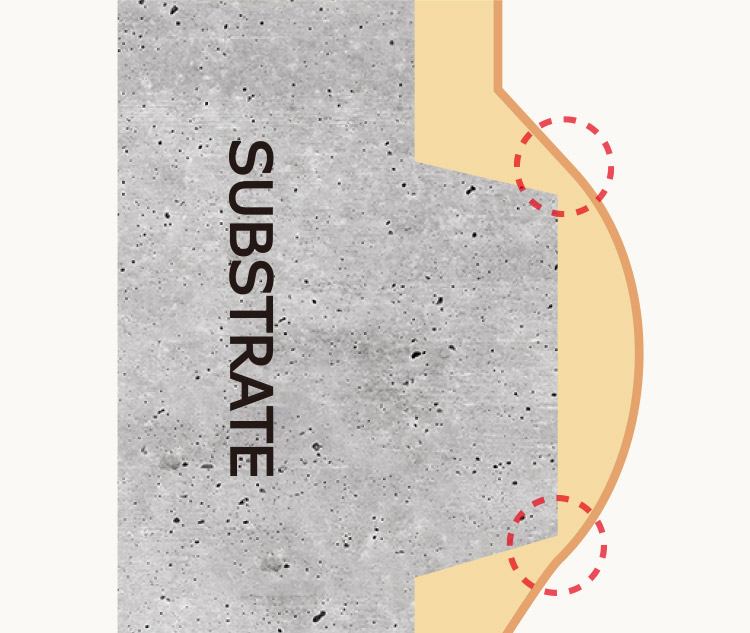

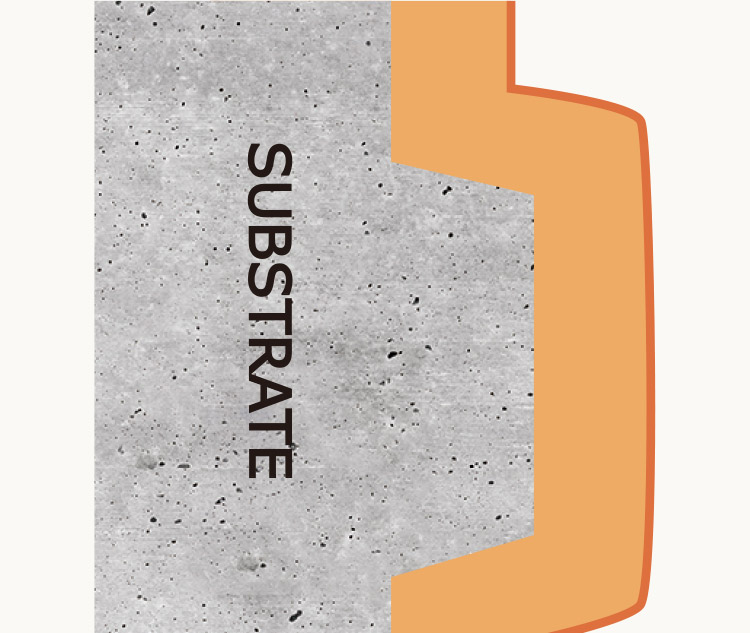

- In case of a general paint
- The coating film on the edge becomes to be thin, and stable coating performance cannot be bringing out.
-
- In case of rheology controlled paint
- The coating film covers the edges thoroughly! Stable performance with little uneven coating!
- What’s Rheology:
- Rheology consists of leveling and thixotropy. If the "leveling property" is good, the coating film becomes be smooth, but it will not be thick. (It feels like dripping honey) On the other hand, if you increase the "thixotropic property", the film becomes to be thicker, but the surface will not be smooth. (It feels like dripping mayonnaise) By adjusting leveling and thixotropy in good balance, it copes with both a beautiful appearance of a feeling of thickness and the ability to cover the edges (convex portions) where the film thickness tends to be thin, improving appearance and durability.

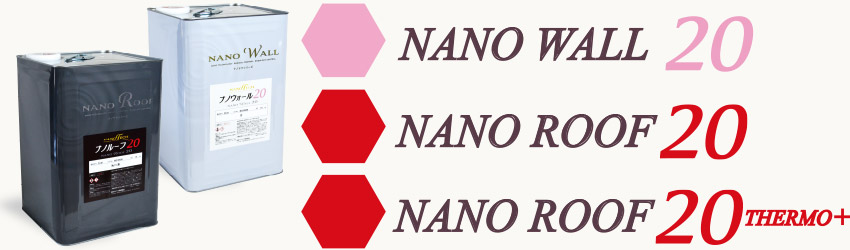

NANO TECH inorganic fluorine resin paint

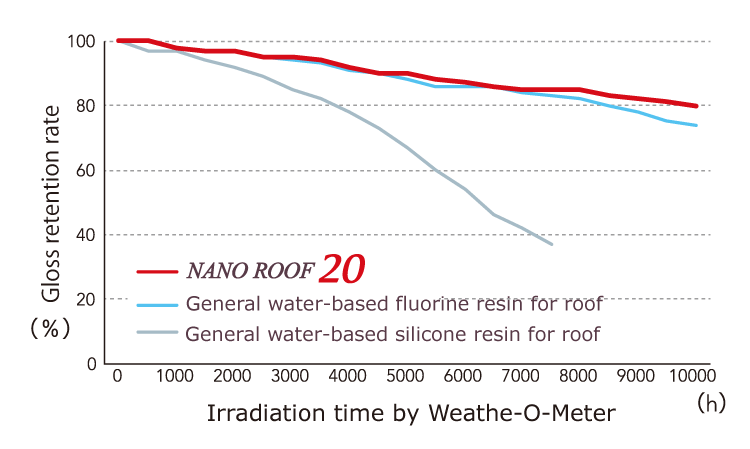

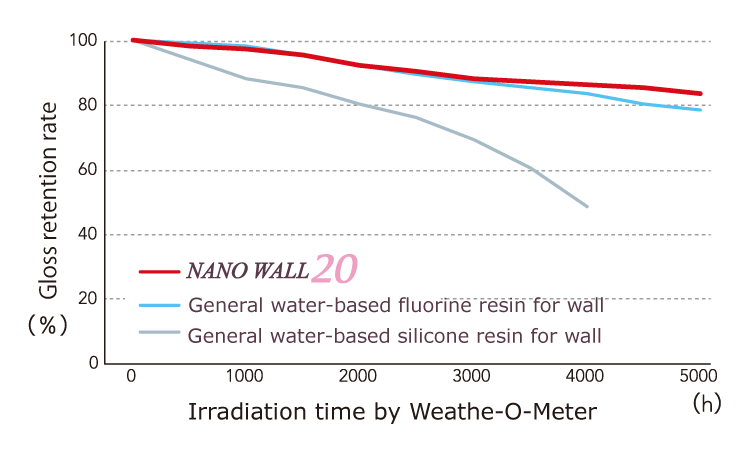

The highest durability Xenon lamp:180W/㎡
The highest durability in the series!
※Since the roof surface is exposed to severe conditions than the wall surface, NANO ROOF is designed to be more durable than NANO WALL.

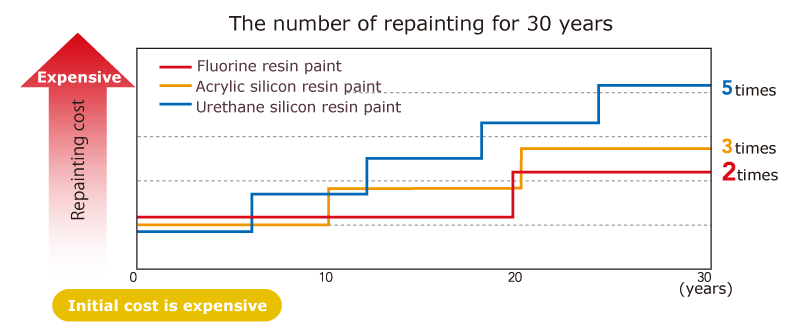

Initial installation cost for fluorine resin paint is expensive than other resin paint.
However, life cycle cost can reduce, and repainting time is less by high durability.
- What’s Life cycle cost (LCC):
- LCC in buildings means not only construction costs but also the total costs necessary for planning, design, construction, operation, maintenance, repair, remodeling, demolition, and disposal. Painting with durable paint can reduce the number of repainting, and can "reduce overall building repair costs".
The highest inorganic fluorine grade
bringing out of the highest durability in the series
Technology suitable for the highest grade and high-performance ingredients are introduced generously.
Different dimension-technology will keep your house for the next generation.

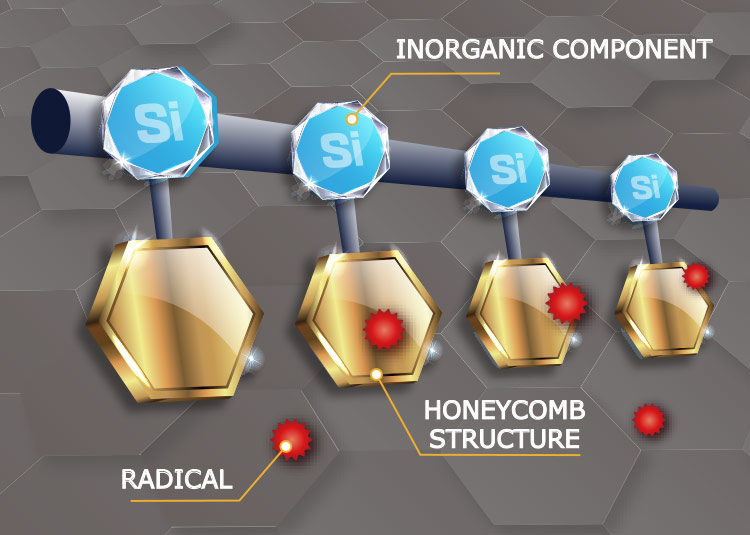

Adopting inorganic honeycomb resin by nano technology
Water resistance and strength of coating film are increased, and it supports the performance of fluorine resin by adopting inorganic honeycomb resin formulated with honeycomb structure and inorganic component (polysiloxane) in resin skeleton.

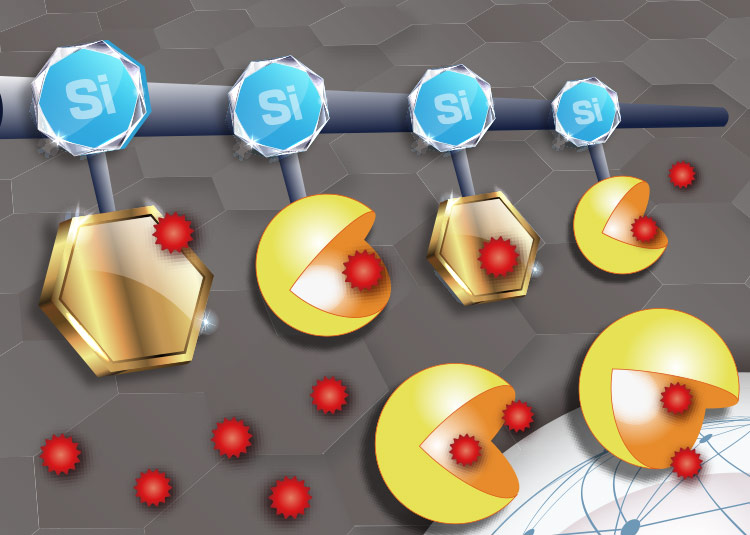

Twin power HALS
It is possible to capture radicals for a longer term by adapting HALS Composition to the paint of high radical control, and in addition to introducing HALS in resin skeleton.
Generously fluorine content
The more fluorine content has much durability of fluorine resin paint.
NANO WALL 20 and NANO ROOF 20 have high durability by generously fluorine content.
High grade nano silicone resin paint

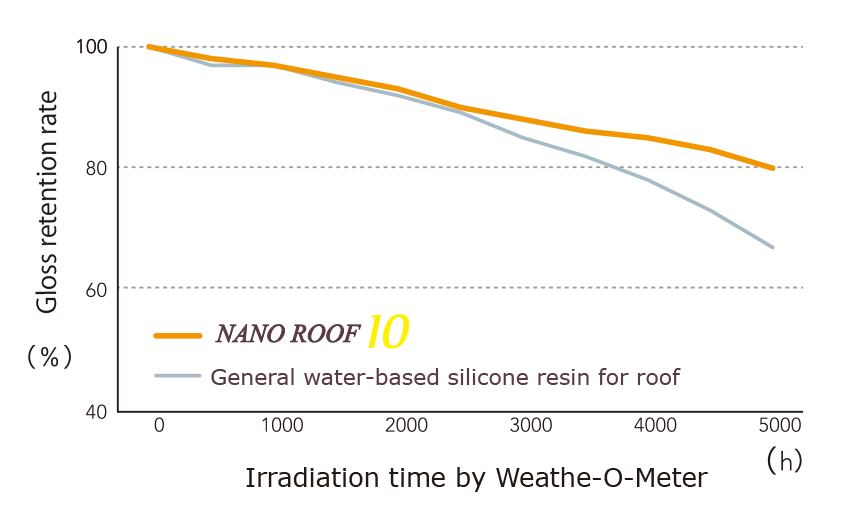

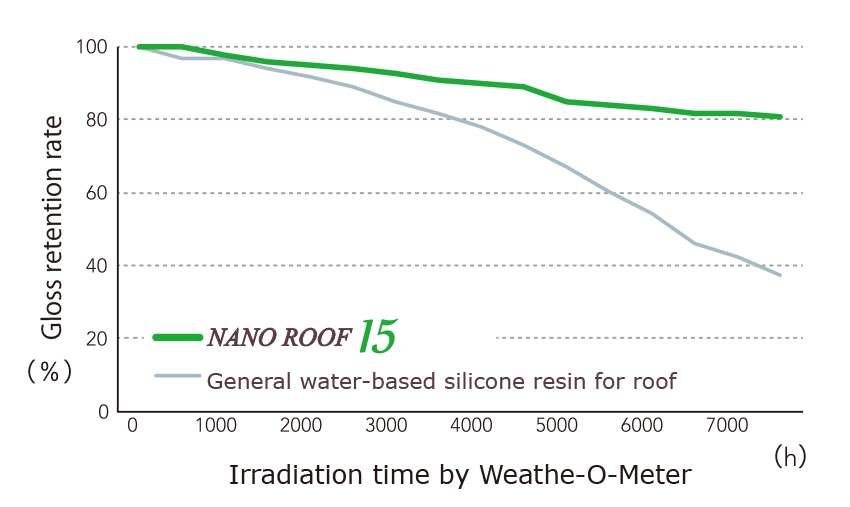

High durability Xenon lamp:180W/㎡
The high durability of silicone resin paint!
※Since the roof surface is exposed to severe conditions than the wall surface, NANO ROOF is designed to be more durable than NANO WALL.
High silicon grade brought out of high durability
It contains a lot of silicone that has high durability.
Further, Nano technology is the most cost-effective by maximizing its potential.
Nanosilocon Technology

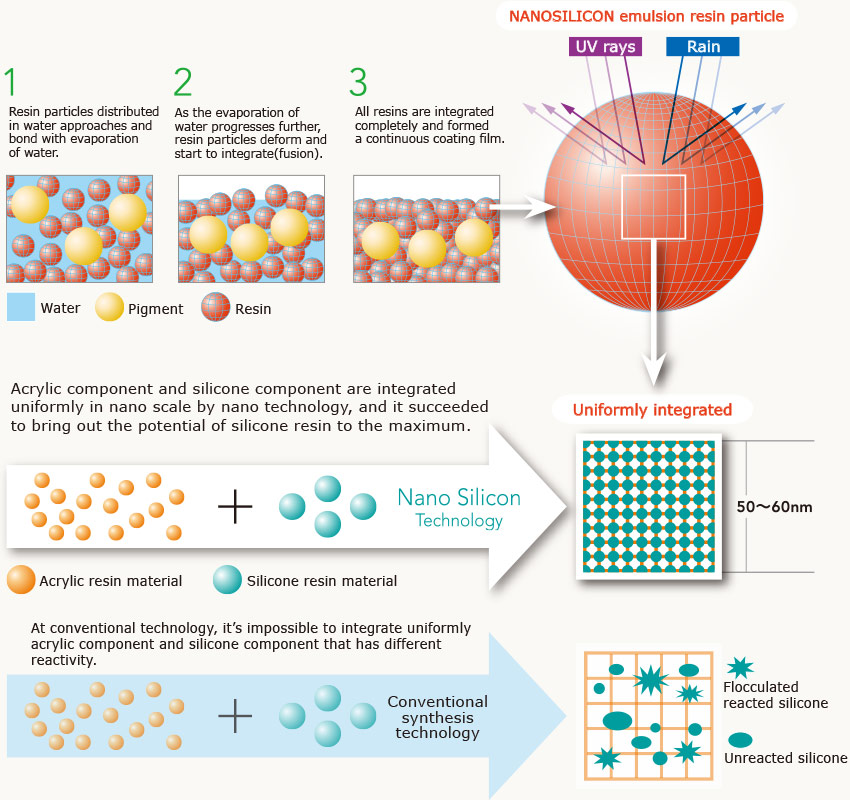

- The process of film forming of water-based paint
- Paint produces to mix materials mainly such as resin and pigment.
Resin of water-based paint is called emulsion that is shaped like the following figure of the particle of sphere, and it is distributed in water.

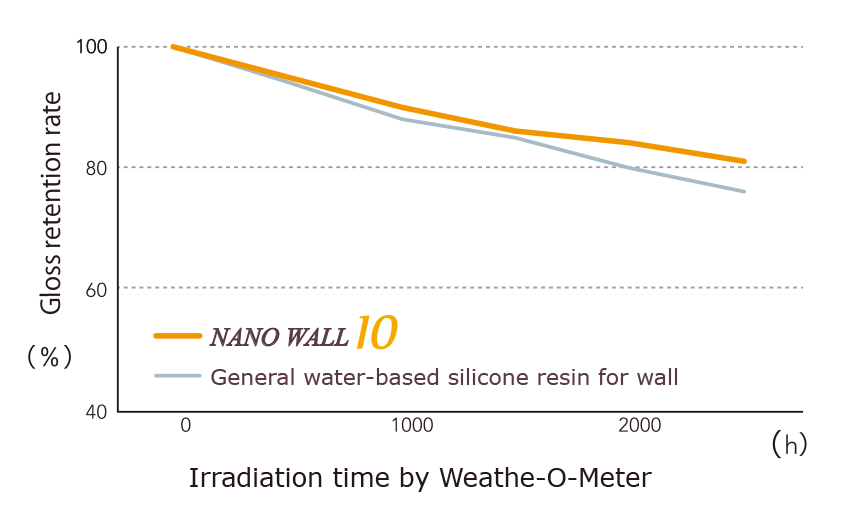

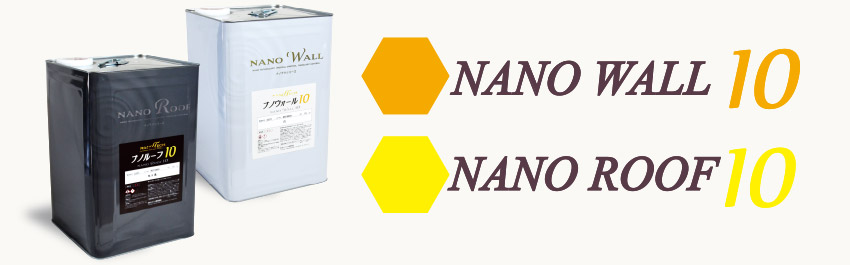

Nanosilicon resin paint

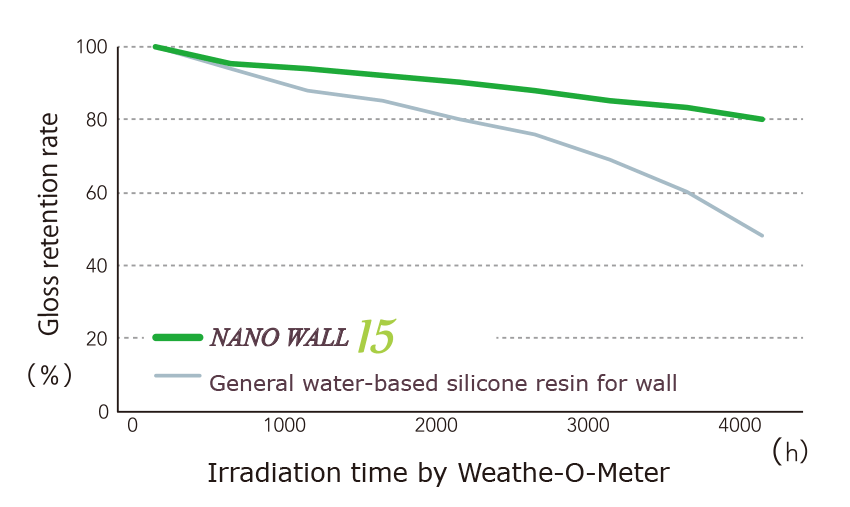

Durability Xenon lamp:180W/㎡
Durability equal to or greater than general water-based silicone paint!
※Since the roof surface is exposed to severe conditions than the wall surface, NANO ROOF is designed to be more durable than NANO WALL.
Standard grade of silicone that has
both cost balance and high performance
It has excellent durability than general water-based silicone paint by nano technology
and core-shell structure although the content of expensive silicone component suppress.

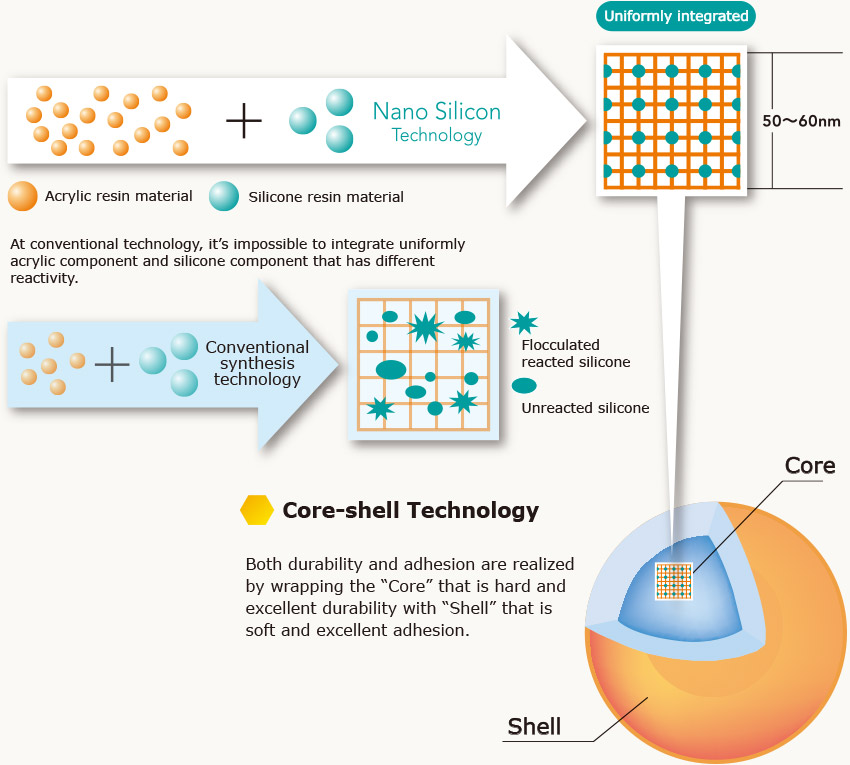

Nanosilocon Technology
- Acrylic component and silicone component are integrated uniformly in nano scale, and it has excellent durability by bringing out the potential of silicon resin to the maximum!!

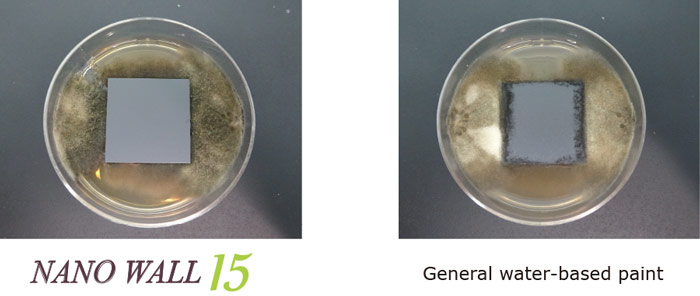

Anti-mold and Anti-algae
A hygienic living environment is maintained by preventing mold and algae growth for a long time.
NANO TECH SERIES have anti-mold and anti-algae in all grades.
※Pictures of test result are NANO WALL 15
Low-contamination
Low contamination properties are a function to prevent the dirty such as rain on the wall. The paint that has excellent low contamination properties is enable to keep the beautiful appearance of the house for a long time. NANO TECH SERIES have low contamination properties in all grades.
Especially, wall is more stand out the dirt than roof. Therefore, NANO WALL SERIES have been designed to have more excellent low-contamination than NANO ROOF SERIES, and more, it has excellent low-contamination equal to or greater than general low-contamination paint.

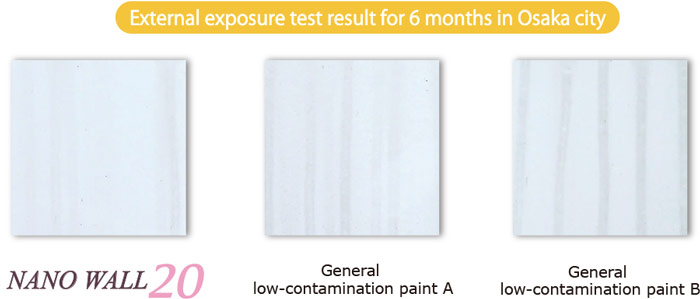

※Pictures of test result are NANO WALL 20

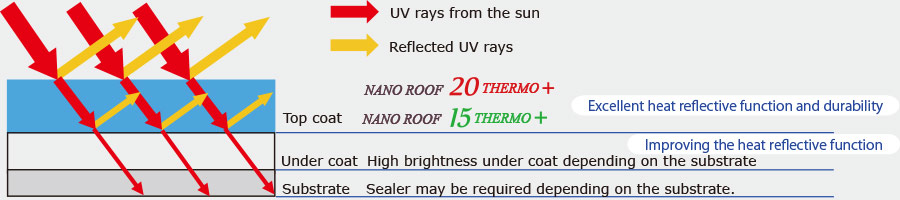

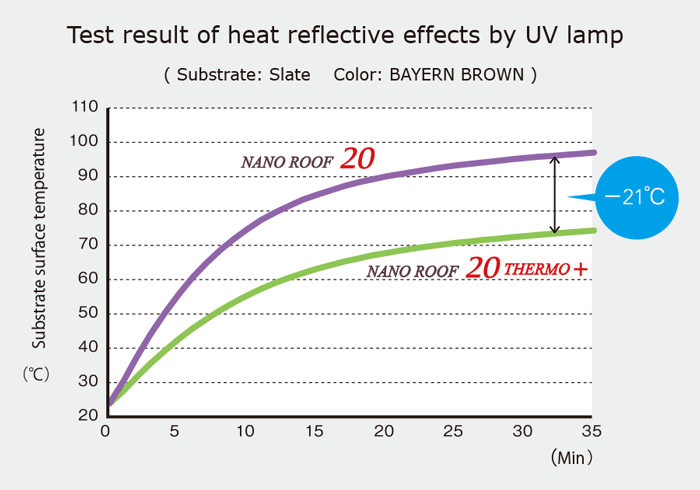

Heat reflective effects of NANO ROOF THERMO +
NANO ROOF THERMO + SERIES are contained unique pigments that reflect the infrared rays of sunlight efficiently.
As a result, the temperature of the roof substrate is significantly reduced, and it’s created the comfortable living environment and leads to energy saving such as air conditioning.
